In 1800, Sir William Herschel, a British-German astronomer and composer, was conducting an experiment when he placed a thermometer outside the red end of the visible spectrum, meant to measure the ambient room temperature. He found that this ‘ambient’ temperature was higher than the temperature measured in the visible spectrum, eventually concluding that there is an invisible form of light beyond the visible spectrum, now known as the infrared (IR) spectrum.

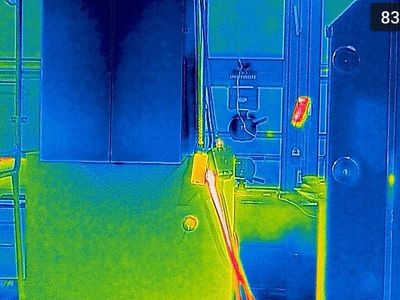

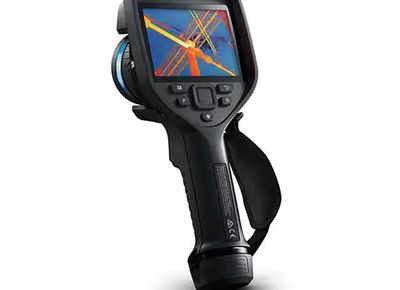

IR thermography, also commonly known as IR testing, thermal testing or thermal imaging, is a form of nondestructive, contact-less testing that measures temperature variances of a component as heat (i.e., thermal radiation) flows through, from, or to a component. Everything above absolute zero emits some amount of infrared radiation invisible to the naked eye. Infrared thermography captures the radiation, converts it into a temperature and displays a thermal image called a thermogram, which displays variations in temperature with different colors or shades of gray.

Infrared thermography has a wide array of applications such as:

Predictive maintenance: Thermal imaging is used to detect abnormalities in equipment, such as overheating components, which can signify impending failures.

Building inspections: Thermographic images can identify heat losses, moisture intrusion, and structural issues by visualizing temperature differences in walls, roofs, and floors.

Electrical systems: By monitoring electrical cabinets and components, thermography can detect hot spots caused by loose connections or overloaded circuits, preventing potential failures or fires.

Fluid systems: Infrared cameras can detect blockages or leaks in pipelines by observing temperature variations.

Roofing: Infrared imaging helps identify wet insulation in flat roofs by spotting areas of heat retention.

Risk management strategies: By understanding vulnerabilities in infrastructure displayed by infrared imaging, risk managers can implement predictive and preventative maintenance plans to reduce the risk of serious issues like fire, leaks, or machinery breakdown.

While the industrial construction of infrastructure and the fabrication of components and systems is governed by statutory codes, standards, and specifications, determining their useful life is not as well controlled or documented.  Most constructed or fabricated items are covered by limited warranties of 5 years or less, but many purchasers will have life expectancies of 30 to 50 years or more.  It is often left to the purchasers to determine the best maintenance procedures and integrity inspections that are needed to assure a component’s safe and reliable use.  Codes of construction include AWS D1 series of welding codes, API 1104 and ASME B31 series of piping codes, ASME Boiler and Pressure Vessel Codes, AWWA and API tank standards.  These codes and standards do not address damage mechanisms such as corrosion, erosion, fatigue, embrittlement, or wear which can contribute to a component failing, but in fact, leave it to the user to determine the types of damage that might be incurred, how often to inspect for it, and whether it is acceptable for reliable use.

To address this issue, the American Petroleum Institute (API) has developed several standards that can be applied to determining the integrity of materials and components.  These include API 653 for above ground atmospheric tanks, API 510 for pressure vessels, and API 570 for piping systems.  These standards provide guidance to owners of equipment on when, where, and how to inspect in order to determine integrity and predict life expectancy.  While the standards were originally designed to address issues in the petroleum industry, they can be applied to many industries and codes of construction, provided that the organizations using them have access to engineering and inspection personnel technically trained and experienced in the design and use of the components being evaluated.

All three standards are similarly organized and offer guidance on inspection frequency and location as well as the types of inspections that would be typically based on historical experience with component failures.  Each standard also provides guidance on determining suitability for continued service including calculations for estimating remaining life.

When and Where to Inspect?

Inspection frequencies are based on known past experience and failures of components and include provisions for both monthly routine inspections and more detailed periodic inspections which are based on many factors including the nature of the product or products stored or transported, risks to humans, the methods of original construction and materials used, repair history, operating conditions, preventative features such as coatings or linings, leak detection systems, the potential risk of air or water pollution, and jurisdictional requirements.

Monthly routine in-service inspections are to be conducted by close visual examination of the components from the ground by owner/operator personnel knowledgeable with the operations and characteristics of the products stored, used, or transported.  The primary purpose of these inspections is to observe conditions for signs of problems or potential problems.

Periodic inspections are conducted by certified inspection personnel authorized by the owner/operator to conduct inspections.  These inspections may be conducted annually, bi-annually, at 5-year intervals, 10-year intervals or longer.  Certified inspection personnel typically consist of API Certified 510, 570, and 653 inspectors who oversee and approve the inspection activities.  These inspectors are often assisted by other certified inspection and testing personnel such as certified welding inspectors, nondestructive testing technicians, and engineering technicians.  The purpose of these inspections is to examine the systems and components in a manner that could reveal problems that may not be obvious during routine in-service inspections.   Periodic inspections may be performed while components are in-service or when they have been taken out of service.

Inspections are conducted both externally and internally as conditions and history warrants.   Additionally, nondestructive methods are employed to assess conditions to areas not accessible, such as the underside of tank bottoms, under insulation, or inherent to the material the component is constructed with.

Inspection Methods

Many inspection methods are used to evaluate the integrity of the components and systems, or the effect the product has on them.  Regardless of the methods employed, all of the standards require detailed Visual Inspections using checklists based on the products and processes being used.  These checklists are developed and evaluated together by the owner/operators along with certified inspection personnel.

Additional tests and inspections can include ultrasonic thickness measurements (UTT), ultrasonic phased array examinations (UTPA), radiographic examinations (RT), magnetic flux leakage tests of tank bottoms (MFL), pulsed eddy current and guided wave examinations for components that are insulated (PEC, GUL), environmental couponing, and magnetic particle (MT) or liquid penetrant examinations (PT).  These tests are conducted at areas having known susceptibility or history of damage that is detectable using the appropriate methods.

Suitability for Service

Once the inspections and tests have been completed the results are analyzed and evaluated to determine the suitability for continued service as well as to determine inspection frequencies based on the extent of damage found along with calculated damage rates.  It is important for the owner operator to document and archive all inspections and changes to operating conditions including start-ups and shut downs as this information is invaluable in assessing the type of damage that can be expected as well as predicting the rates they occur.

At the conclusion of any asset integrity inspection, a detailed report is prepared and provided to the owner/operator detailing the types of inspections and tests conducted, the results found, any required repairs needed, and recommendations for continued service including the next inspection interval.

Conclusion

Inspection of assets is a valuable tool for mitigating risks and predicting expected life of materials and components.  It protects human life while providing information for owners/operators to budget for maintenance, repairs, replacements based on actual conditions.  The methods and standards provided by API 510, 570, and 653 can be applied to many components including tanks, process piping, pressure vessels, and structural components including solar, sign, and light structures.   Phoenix National Laboratories provides inspections on all of these components and together as part of the Applied Technical Services Family of Companies has a vast array of experienced and certified personnel across the US to service your asset integrity needs.
